Structural Glazing

Stick Glazing , Semi-Unitized Glazing and Curtain Wall Glazing

Reflective / Tinted glass from SAINT GOBAIN / ASSAI / MODI is specially made by a process known as on-line pyrolitic coating, also known as hard coating which involves fusing precious metallic oxides on the surface of the float glass at high temperatures while glass is under formation. This coating gives mirror like appearance which is aesthetically pleasing and provides superior functional benefits like solar control and glare reduction. It gives Thermal comfort and visual comfort.

Aluminum

The frame work is made of rectangular aluminum tube of size 64mm x 58mm and electro colored to 15 microns. The Aluminum extrusion is manufactured as per IS 63400.and the glass is pasted to it using the structural sealant. And a Sub Frame of 26.5 x 20.5 x 1.8mm is fabricated and the above mentioned glass makes are pasted to the sections and duly cured for a minimum of a week’s time using structural sealants ensuring the fool proof bonding of the glass to metal before erecting it to the main Transom and Mullion in case of a Semi- Unitized Glazing Patterns.

Glazing Sealant

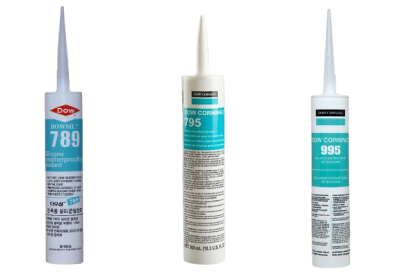

Dow CORNING 995 Silicone Structural glazing sealant is used for fixing the glass with aluminum frame. This Sealant is Odorless, non corrosive and highly resisting to ultra violet radiation, heat and humidity.
